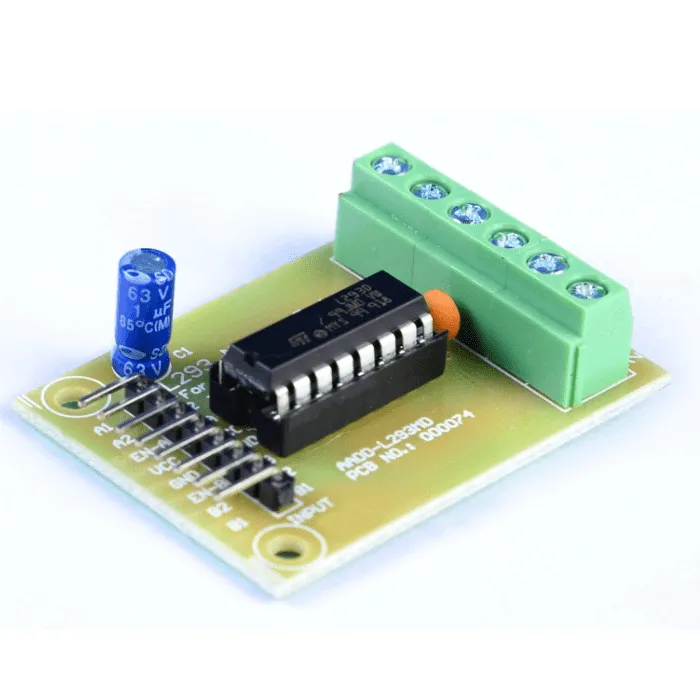

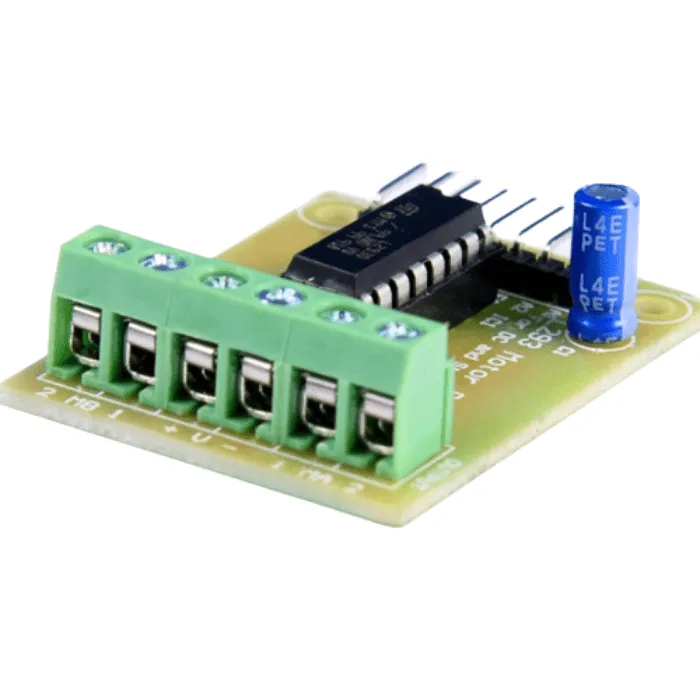

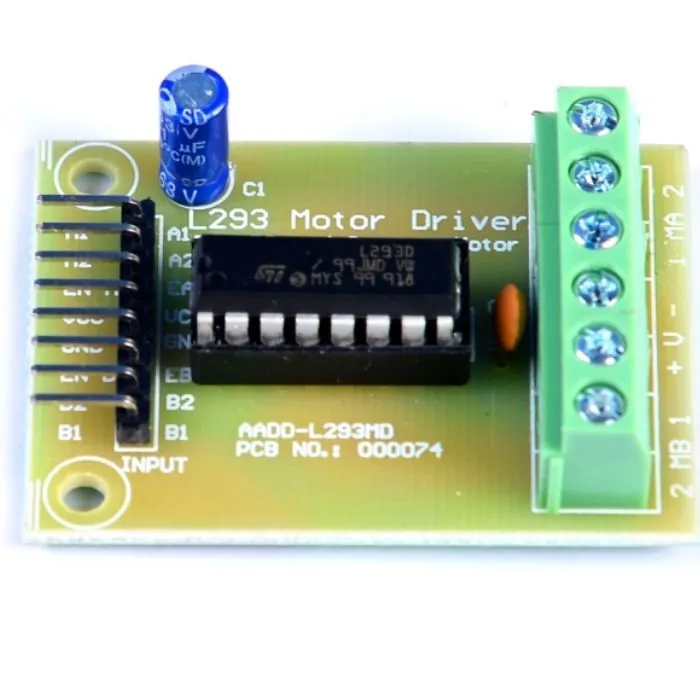

L293D Motor Driver Board

The L293D Motor Driver Module is a medium-power motor driver that is ideal for driving DC and . It employs the well-known L293 motor driver IC. The l293d motor driver board can turn on and off four DC motors or control two DC motors with directional and speed control. The driver greatly simplifies and improves the ease with which microcontrollers can control motors, relays, and other devices. It has a total DC current of up to 600mA and can drive motors up to 12V.

To double the maximum current, connect the two channels in parallel, or in series to double the maximum input voltage. This motor driver is ideal for robotics and mechatronics projects that require controlling motors from microcontrollers, switches, relays, and other devices. Ideal for driving DC and Stepper motors in micro-mouse, line-following robots, robot arms, and other applications.

If you want to control the  with this motor driver, for that you will need a few essential components like

Features:

• Pin compatible with L293D
• Wide supply voltage: 4.5 V to 12 V.
• Max supply current: 600 mA per motor.
• The driver has two holes of 3 mm dia.
• Male burg-stick connectors for supply, ground, and input connection.
• Screw terminal connectors for easy motor connection.
• High noise immunity inputs.
• Internal ESD Protection.
• Thermal Shutdown

check out :

Package Includes:

• 1 x L293D Motor Driver Board

Specifications:
