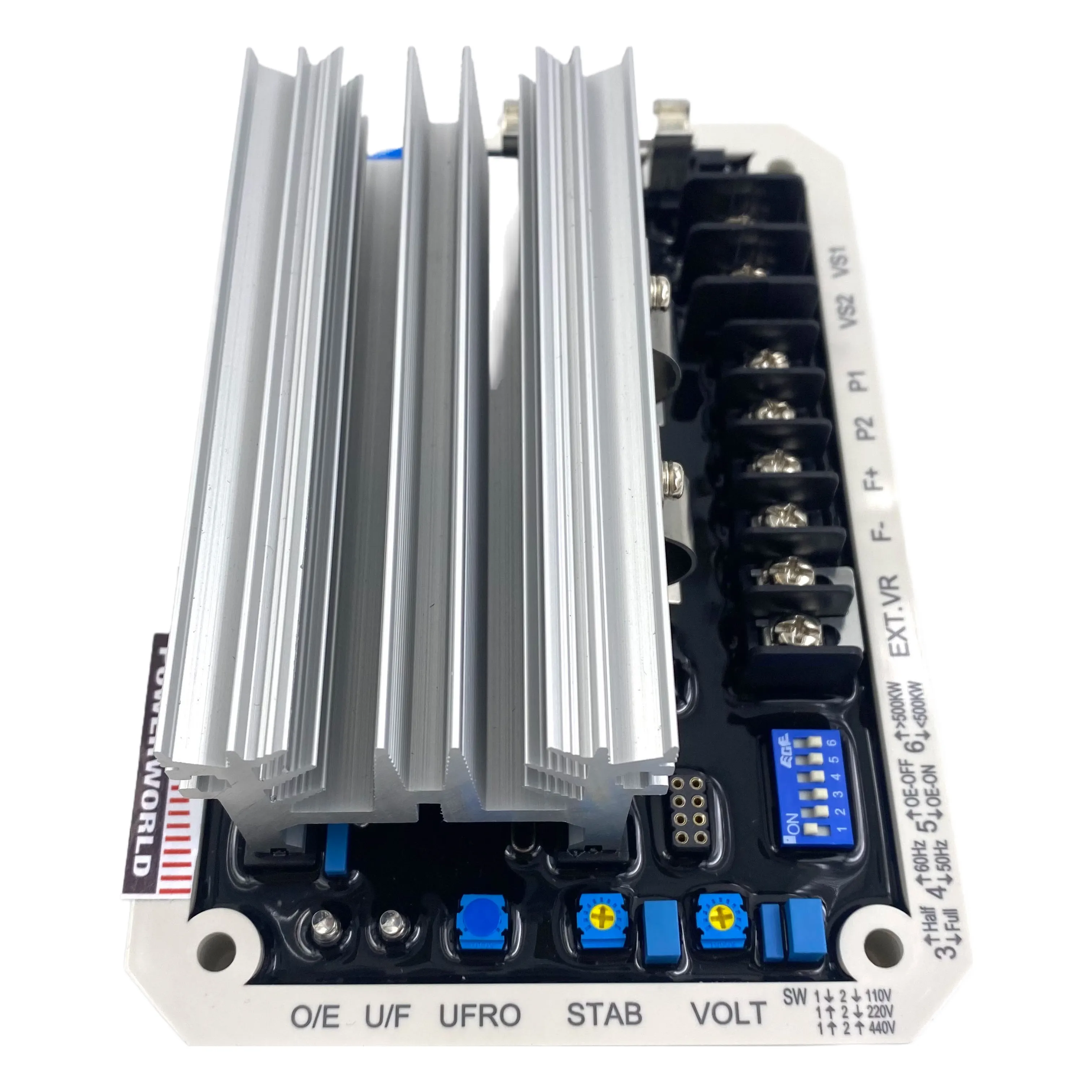

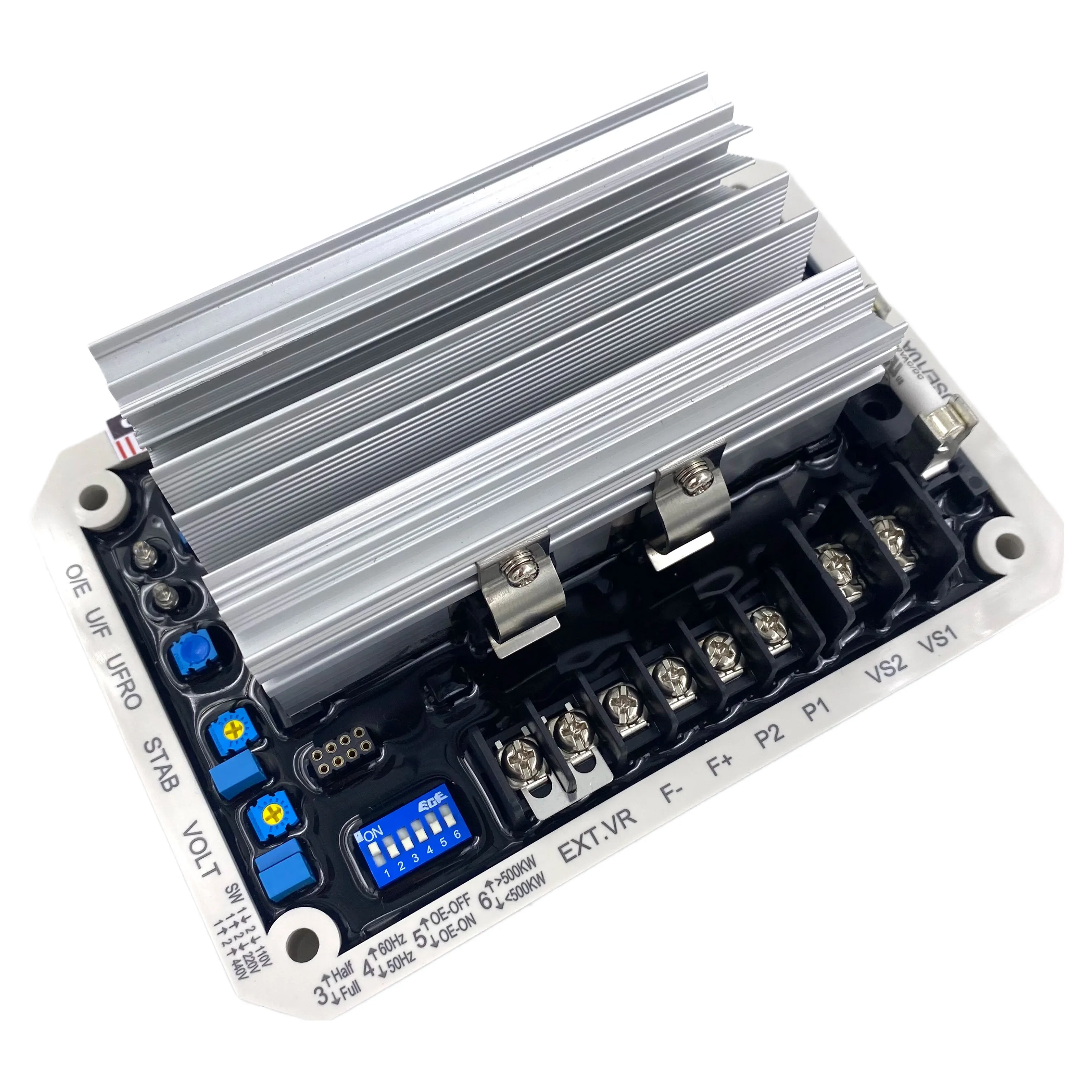

SP Powerworld ADVR-07FH Universal 7 Amp with selectable Full-wave / Half-wave output for self-excited brushless generators
ADVR-07FH built-in with EMI suppression circuitis and equipped with Under Frequency and Over Excitation Protection, also Soft Start Ramp Time for Voltage Build-up. The new design for digital voltage sensing and under frequency protection circuits improve thermal drift performance.
£150.00 plus VAT
Ex stock - shipped Worldwide. For EURO or USD pricing please contact us:
Sales:
Tel: 44 (0)115 923 2568 (United Kingdom)
Tel: (24-hour) 44 (0)7484709956 (United Kingdom)
Features:
- Digital voltage sensing circuit and Under Frequency Protection circuit improve thermal drift characteristics
- Excitation output Half Wave / Full Wave selectable
- Soft start voltage ramping
- Over excitation protection
- EMI suppression
- Built-in high capacity fuse
|
|
Specifications:
ensing Input
(Average Readings) |
- Voltage 90 to 540 Vac 1 phase 2 wire
- Frequency 50 / 60 Hz DIP switch setting
|
| Adjustment |
- Adjustment 90 to 130 Vac @ 110 Vac
- 175 to 270 Vac @ 220 Vac
350 to 540 Vac @ 440 Vac
|
| Power Input |
- Voltage 60 to 300 Vac 1 phase
- Frequency 40 to 60 Hz
|
| Build Up Voltage |
- Residual voltage at power input > 5 Vac @ 25 Hz
|
| Voltage Regulation |
- Less than /- 0.5% (with 4% engine governing)
|
| Soft Start Ramp Time |
|
| Response Time |
|
| EMI |
- Built-in electromagnetic interference filter
|
| Voltage Thermal Drift |
- Less than 3% from -40 to 70 °C
|
| U/F Knee Point Thermal Drift |
- Less than /- 0.1 Hz from -40 to 70 °C
|
| Static Power Dissipation |
|
| External Voltage Adjustment |
- Max. /- 10% @ 1 KΩ 1 watt potentiometer
|
| Under Frequency Protection (Factory Presets) |
- 50 Hz system knee point presets at 45 Hz
- 60 Hz system knee point presets at 55 Hz
|
Excitation Output, Resistance, O/E Voltage Protection and DIP SW Setting
| |
DIP
SW3 |
Power
Input |
Excitation Output *1
|
Exciter Resistance |
Excitation Output *2
|
Half
Wave |
ON |
110 Vac |
Continuous 31 Vdc 7A Max. 45 Vdc 10A 10 Sec |
Min.4.5 Ohm, Max.100 Ohm |
Excitation Voltage 43V /-10% |
| 220 Vac |
Continuous 63 Vdc 7A Max. 90 Vdc 10A 10 Sec |
Min.9 Ohm, Max.100 Ohm |
Excitation Voltage 85V /-10% |
Full
Wave |
OFF |
110 Vac |
Continuous 63 Vdc 7A Max. 90 Vdc 10A 10 Sec |
Min.9 Ohm, Max.100 Ohm |
Excitation Voltage 85V /-10% |
| 220 Vac |
Continuous 125 Vdc 7A Max. 180 Vdc 10A 10 Sec |
Min.18 Ohm, Max.100 Ohm |
Excitation Voltage 170V /-10% |
- 1 Fuse specification 6.3 x 32 mm 10A Fast Blow type.
- 2 Excitation output will be turned off in 10 seconds time delay, Inverse-time curve. This function can be turned OFF.
Environment
|
| Operating Temperature |
|
| Storage Temperature |
|
| Relative Humidity |
|
| Vibration |
|
Accessories
|
| Jumper terminals |
|
| Jumper wire |
|
Physical Specifications
|
| Dimension |
- 162.0 (L) x 112.0 (W) x 59.0 (H) mm
- 6.38 (L) x 4.41 (W) x 2.32 (H) inch
|
| Weight |
|
|
